Numbered sections click together by hand, and feet slot into place and tighten with thumbscrews.
No separate lighting rig to wire up, no visible cabling across the face of the display.
Fabric pushes into a channel around the frame edge and locks in place; an optional blockout liner stops light spilling through to the reverse side.
Base frames plus 0.85m and 1m extensions, joined with 90° or T connectors for straight walls, corners, or U-shaped layouts.
An 0.85m-module version at 2.3m height is sized specifically to sit inside a standard shell scheme bay.
Each kit is a complete bill of materials — frames, connectors, feet and double-sided SEG graphics — sized to a standard shell scheme footprint and ready to purchase outright.
3×3
Three 2.85m frames joined with 90° connectors, on feet, dressed with SEG graphics front and back. Frames: 3 × 2.85m

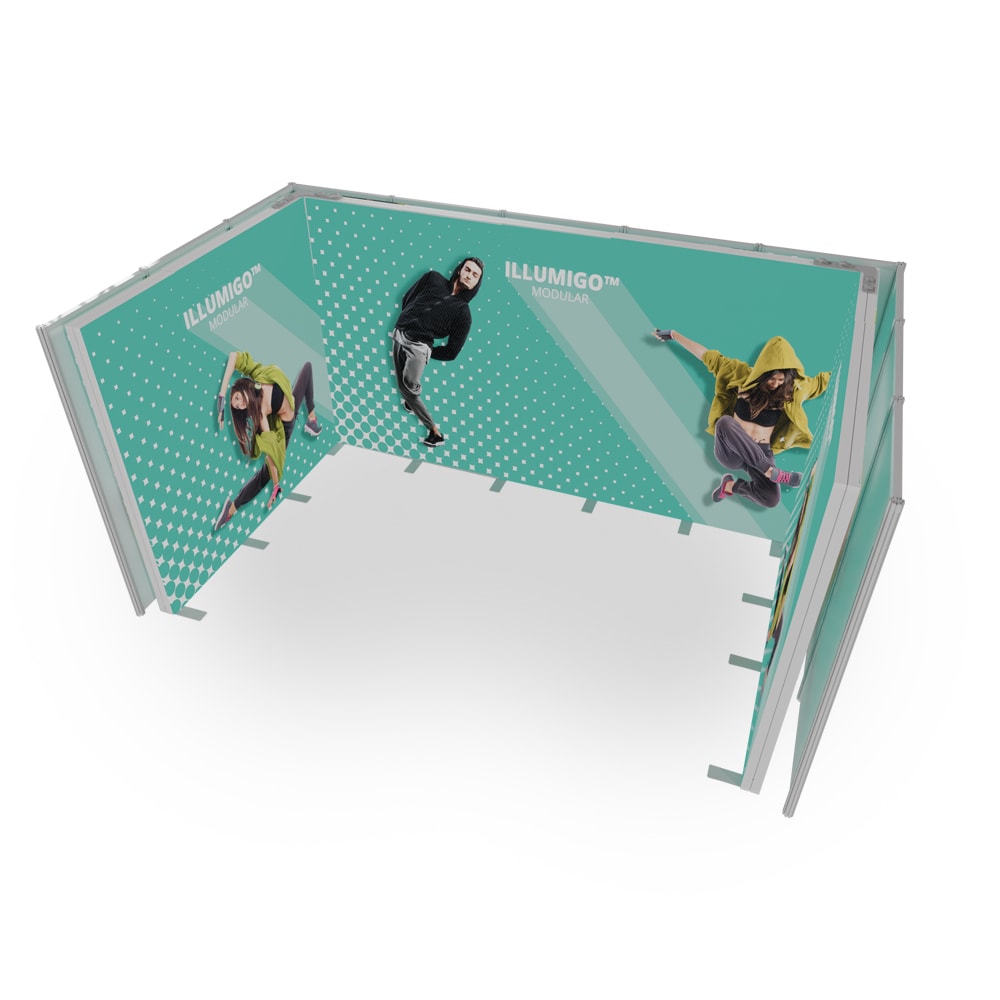

3×5
Two 2.85m frames and one 4.85m frame, connectors and feet included, SEG graphics front and back. Frames: 2 × 2.85m + 1 × 4.85m
2×6
One 5.85m frame flanked by two 1.85m frames — a wide illuminated backdrop for a corner or double bay. Frames: 1 × 5.85m + 2 × 1.85m
Sizes shown are the kits Redblu builds most often. Every kit can be resized in 0.85m or 1m steps using extension pieces — talk to us about your exact footprint.
Every part of the assembly is designed to be done by hand by a small crew, in the order the numbering on the frame tells you.
The frame goes up in the order it's labelled, so there's no guessing which piece goes where.
No spanners or drivers required.
Pushed in by hand, held securely without adhesive or clips.
100–240V input means it runs off standard venue power anywhere.
Foam-protected for transport and storage between shows.
Transformer scaling: 1 transformer covers up to 3m of wall, 2 up to 4m, 3 up to 4.8m, and 4 for anything from 4.85m up to the full 7.85m.
Because you own the frame outright, only the SEG graphic needs replacing between campaigns. The aluminium structure, LEDs and connectors are reused indefinitely — one set of hardware, a new graphic each show, far less landfill than a single-use build.

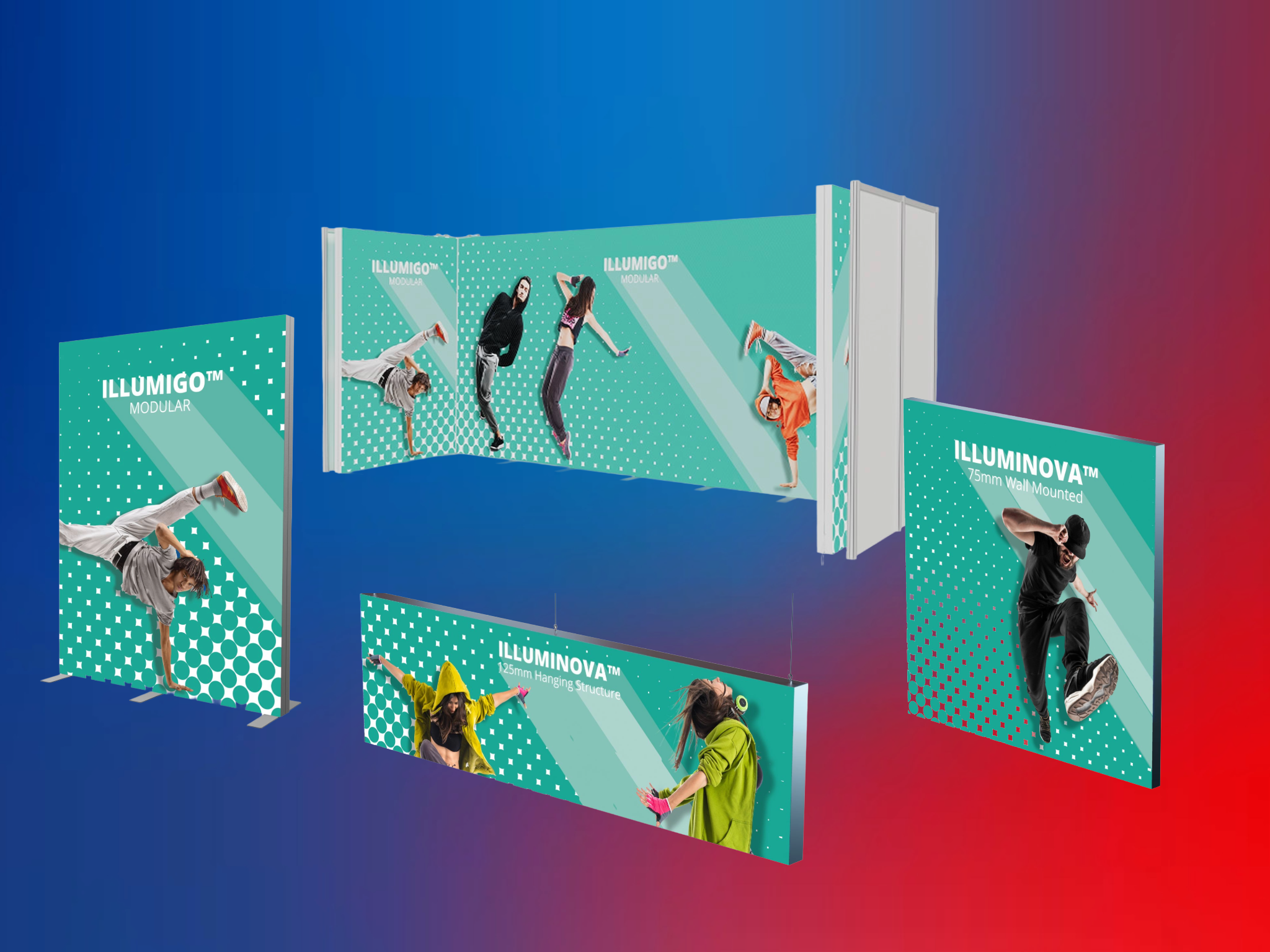

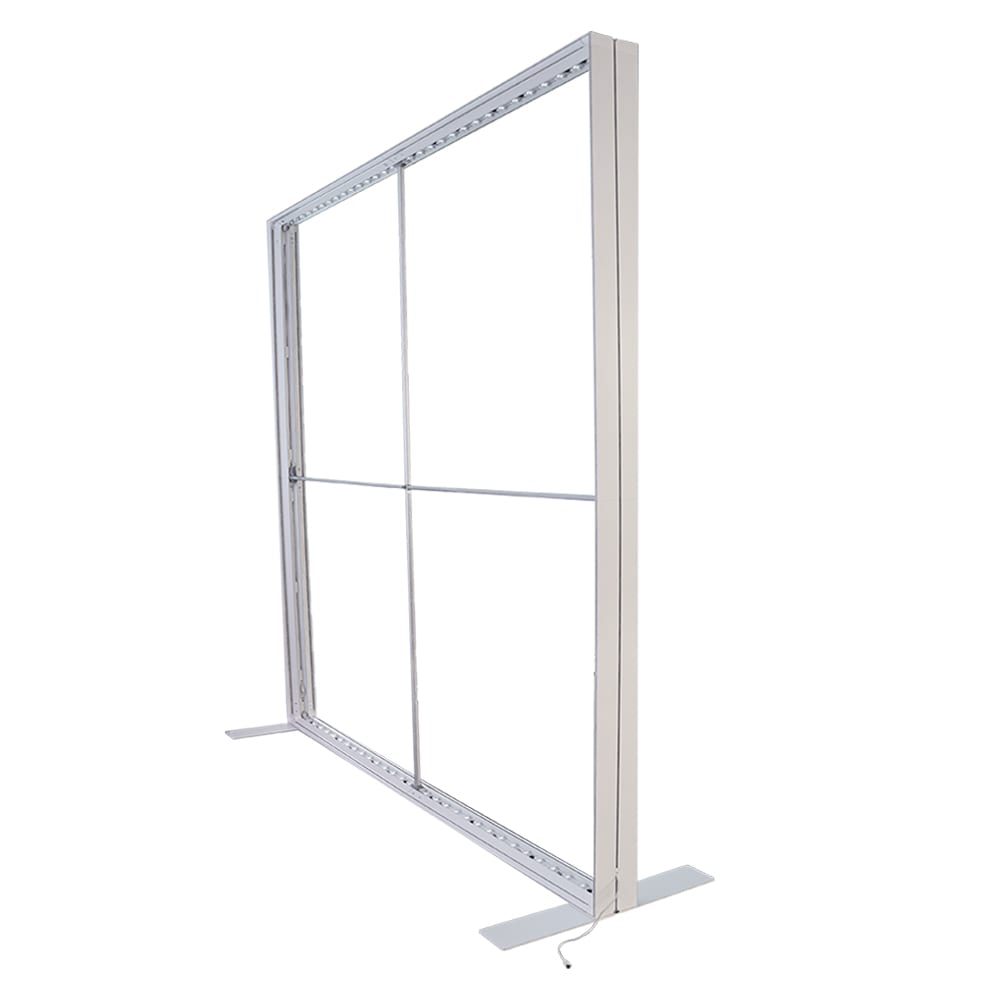

iLLumigo is a modular aluminium lightbox display system. LEDs are fitted at the factory inside a 120mm-deep frame, numbered sections push together without tools, and a double-sided SEG fabric graphic locks into a channel around the edge for a seamless illuminated finish.
FastFrame is a non-illuminated modular frame system. iLLumigo is the lightbox equivalent — the same tool-free, reusable, purchase-outright idea, but with LEDs built into the frame for a backlit graphic. If you want the lightbox look, iLLumigo is the one; if you don't need illumination, FastFrame does the same job for less.
Yes. A narrower 0.85m-module version at 2.3m height is built specifically to sit within standard shell scheme walls, and we offer ready-made 3x3, 3x5 and 2x6 shell scheme kits sized to typical bay footprints.
iLLumigo is a self-build purchase system — you buy the frame outright and it's yours to reconfigure and reuse. If you'd rather not own the hardware, our Aluvision and T3 Systems partners cover the hire route instead.
It scales with total width: one transformer covers up to 3m, two up to 4m, three up to 4.8m, and four for anything from 4.85m up to the full 7.85m.
Because you own the frame outright, only the SEG graphic needs replacing between campaigns — the aluminium structure, LEDs and connectors are reused indefinitely, which is one of the lowest-waste ways to keep a lightbox presence fresh for every show.
